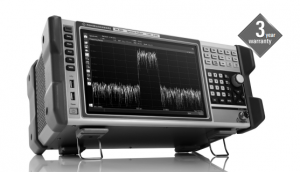

Анализатор спектра R&S FPL1003

Definitions General Product data applies under the following conditions:  Three hours storage at ambient temperature followed by 30 minutes warm-up operation  Specified environmental conditions met  Recommended calibration interval adhered to  All internal automatic adjustments performed, if applicable Specifications with limits Represent warranted product performance by means of a range of values for the specified parameter. These specifications are marked with limiting symbols such as <, ≤, >, ≥, ±, or descriptions such as maximum, limit of, minimum. Compliance is ensured by testing or is derived from the design. Test limits are narrowed by guard bands to take into account measurement uncertainties, drift and aging, if applicable. Specifications without limits Represent warranted product performance for the specified parameter. These specifications are not specially marked and represent values with no or negligible deviations from the given value (e.g. dimensions or resolution of a setting parameter). Compliance is ensured by design. Typical data (typ.) Characterizes product performance by means of representative information for the given parameter. When marked with <, > or as a range, it represents the performance met by approximately 80 % of the instruments at production time. Otherwise, it represents the mean value. Nominal values (nom.) Characterize product performance by means of a representative value for the given parameter (e.g. nominal impedance). In contrast to typical data, a statistical evaluation does not take place and the parameter is not tested during production. Measured values (meas.) Characterize expected product performance by means of measurement results gained from individual samples. Uncertainties Represent limits of measurement uncertainty for a given measurand. Uncertainty is defined with a coverage factor of 2 and has been calculated in line with the rules of the Guide to the Expression of Uncertainty in Measurement (GUM), taking into account environmental conditions, aging, wear and tear. Device settings and GUI parameters are indicated as follows: “parameter: value”. Typical data as well as nominal and measured values are not warranted by Rohde & Schwarz. In line with the 3GPP/3GPP2 standard, chip rates are specified in Mcps (million chips per second), whereas bit rates and symbol rates are specified in Mbps (million bits per second), kbps (thousand bits per second) or ksps (thousand symbols per second), and sample rates are specified in Msample/s (million samples per second). Mcps, Mbps, kbps, ksps and Msample/s are not SI units.

Specifications Frequency Frequency range 5 kHz to 3 GHz Frequency resolution 0.01 Hz Reference frequency, internal, nominal Accuracy (time since last adjustment × aging rate) + temperature drift + calibration accuracy Aging per year standard 1 × 10–6 with R&S®FPL1-B4 OCXO reference frequency option 1 × 10–7 Temperature drift (0 °C to +50 °C) standard 1 × 10–6 with R&S®FPL1-B4 OCXO reference frequency option 1 × 10–7 Achievable initial calibration accuracy standard 5 × 10–7 with R&S®FPL1-B4 OCXO reference frequency option 5 × 10–8 Frequency readout Marker resolution 0.01 Hz Uncertainty ±(marker frequency × reference uncertainty + 10 % × resolution bandwidth + ½ (span/(sweep points –1)) + 1 Hz) Number of sweep (trace) points default value 1001 range 101 to 100001 Marker tuning frequency step size marker step size = sweep points span/(sweep points – 1) marker step size = standard span/(default sweep points – 1) Frequency counter resolution 1 Hz Count accuracy ±(frequency × reference uncertainty + ½ (last digit)) Display range for frequency axis 0 Hz, 10 Hz to max. frequency Resolution 0.1 Hz Max. span deviation 0.1 %

Spectral purity SSB phase noise frequency = 1000 MHz, carrier offset 100 Hz –88 dBc (1 Hz) (nom.) 1 kHz –107 dBc (1 Hz) (nom.) 10 kHz < –105 dBc (1 Hz), typ. –108 dBc (1 Hz) 100 kHz < –113 dBc (1 Hz), typ. –116 dBc (1 Hz) 1 MHz < –133 dBc (1 Hz), typ. –136 dBc (1 Hz) 10 MHz –153 dBc (1 Hz) (nom.)

Sweep time Range span = 0 Hz 1 µs to 8000 s span ≥ 10 Hz, RBW ≥ 100 kHz 1 ms to 8000 s 1 span ≥ 10 Hz, RBW < 100 kHz 75 µs to 8000 s 2 Sweep time accuracy span = 0 Hz 0.1 % (nom.) span ≥ 10 Hz, RBW ≥ 100 kHz 3 % (nom.) Resolution bandwidths Sweep filters and FFT filters Resolution bandwidths (–3 dB) sweep filters 100 kHz to 10 MHz in 1/2/3/5 sequence FFT filters 1 Hz to 50 kHz in 1/2/3/5 sequence Bandwidth uncertainty < 3 % (nom.) Shape factor 60 dB:3 dB < 5 (nom.)

Channel filters Bandwidths (–3 dB) 100/200/300/500 Hz 1/1.5/2/2.4/2.7/3/3.4/4/4.5/5/6/7.5/8.5/9/ 10/12.5/14/15/16/20/21/25/30/50/100/150/ 192/200/300/500 kHz 1/1.228/1.5/2/3/3.75/5/10 MHz Bandwidth uncertainty < 2 % (nom.) Shape factor 60 dB:3 dB < 2 (nom.) Video bandwidths standard 1 Hz to 10 MHz in 1/2/3/5 sequence Signal analysis bandwidth (equalized) standard 10 MHz (nom.) with R&S®FPL1-B40 option 40 MHz (nom.) Level Display range displayed noise floor up to +30 dBm Max. input level DC voltage 50 V CW RF power RF attenuation 0 dB RF preamplifier = off 20 dBm (= 0.1 W) with R&S®FPL1-B22 option, RF preamplifier = on 13 dBm (= 0.02 W) RF attenuation ≥ 10 dB RF preamplifier = off 30 dBm (= 1 W) with R&S®FPL1-B22 option, RF preamplifier = on 23 dBm (= 0.2 W) Pulse spectral density RF attenuation 0 dB, RF preamplifier = off 97 dB µV/MHz Max. pulse voltage RF attenuation ≥ 10 dB 150 V Max. pulse energy RF attenuation ≥ 10 dB, 10 µs 1 mWs Intermodulation 1 dB compression of input mixer (two-tone) RF attenuation 0 dB, RF preamplifier = off +7 dBm (nom.) Third-order intercept point (TOI) RF attenuation 0 dB, level 2 × –20 dBm, ∆f > 5 × RBW or 10 kHz, whichever is larger, RF preamplifier = off 10 MHz ≤ fin < 300 MHz > 13 dBm, typ. 16 dBm 300 MHz ≤ fin < 3 GHz > 17 dBm, typ. 20 dBm Second harmonic intercept (SHI) RF attenuation 0 dB, level –13 dBm, RF preamplifier = off 1 MHz < fin ≤ 900 MHz 45 dBm (nom.) 900 MHz < fin ≤ 1.5 GHz 70 dBm (nom.) Displayed average noise level (DANL) 0 dB RF attenuation, termination 50 Ω, log. scaling, normalized to 1 Hz RBW, RBW = 1 kHz, VBW = 1 Hz, sample detector, +20 °C to +30 °C RF preamplifier off 5 kHz ≤ f < 100 kHz typ. –146 dBm 100 kHz ≤ f < 5 MHz < –145 dBm, typ. –150 dBm 5 MHz ≤ f < 2 GHz < –149 dBm, typ. –152 dBm 2 GHz ≤ f < 3 GHz < –148 dBm, typ. –151 dBm RF preamplifier on (gain 20 dB (nom.)) 3 MHz ≤ f < 10 MHz < –155 dBm, typ. –160 dBm 10 MHz ≤ f < 2 GHz < –163 dBm, typ. –167 dBm 2 GHz ≤ f < 3 GHz < –162 dBm, typ. –165 dBm Spurious responses mixer level ≤ –13 dBm, sweep optimization: auto or dynamic Image response 10 MHz ≤ f ≤ 3 GHz fin – 2 × 4020.4 MHz (1st IF) typ. < –90 dBc fin – 2 × 820.4 MHz (2nd IF) < –90 dBc fin – 2 × 20.4 MHz (3rd IF), RBW ≤ 5 MHz < –80 dBc Intermediate frequency response 2 MHz ≤ f ≤ 3 GHz 1st IF (4020.4 MHz) typ. < –90 dBc 2nd IF (820.4 MHz) < –80 dBc 3rd IF (20.4 MHz) < –80 dBc Residual spurious response 0 dB RF attenuation f ≤ 1 MHz < –90 dBm (nom.) f > 1 MHz < –90 dBm

Local oscillator related spurious f < 3 GHz 1 kHz ≤ carrier offset ≤ 10 MHz < –70 dBc carrier offset > 10 MHz < –80 dBc Other interfering signals Subharmonic of 1st LO 20 MHz ≤ f < 3 GHz, spurious at 4020.4 MHz – 2 × fin < –80 dBc (nom.) Harmonic of 1st LO mixer level < –25 dBm, spurious at fin –2010.2 MHz < –80 dBc (nom.) Level display Logarithmic level axis 1 dB to 200 dB, in 1 dB steps Linear level axis 10 % of reference level per level division, 10 divisions or logarithmic scaling Number of traces 6 Trace detector max. peak, min. peak, auto peak (normal), sample, RMS, average Trace functions clear/write, max. hold, min. hold, average, view Setting range of reference level –130 dBm to (–13 dBm + RF attenuation – RF preamplifier gain), in steps of 0.01 dB Units of level axis dBm, dBµV, dBmV, dBµA, dBpW, V, A, W Level measurement uncertainty Absolute level uncertainty at 50 MHz RBW = 10 kHz, level –10 dBm, reference level –10 dBm, RF attenuation 10 dB +20 °C to +30 °C < 0.3 dB (σ = 0.1 dB) 0 °C to +50 °C < 0.5 dB (σ = 0.17 dB) Frequency response referenced to 50 MHz RF attenuation 10/20/30/40 dB, RF preamplifier = off, +20 °C to +30 °C 5 kHz ≤ f < 3 MHz < 1 dB (nom.) 3 MHz ≤ f < 3 GHz < 0.3 dB (σ = 0.1 dB) any setting of RF attenuation, RF preamplifier = off, 0 °C to +50 °C 5 kHz ≤ f < 3 GHz < 1 dB (nom.) RF attenuation ≤ 20 dB,RF preamplifier = on, +20 °C to +30 °C 3 MHz ≤ f < 3 GHz < 0.6 dB (nom.) Attenuator switching uncertainty f = 50 MHz, 0 dB to 45 dB, referenced to 10 dB attenuation < 0.2 dB (σ = 0.07 dB) Uncertainty of reference level setting 0 dB 3 Bandwidth switching uncertainty referenced to RBW = 10 kHz and sweep type FFT sweep type = FFT (RBW < 100 kHz) < 0.1 dB (nom.) sweep type = sweep (RBW ≥ 100 kHz) < 0.2 dB (nom.) Nonlinearity of displayed level Logarithmic level display S/N > 16 dB, 0 dB to –50 dB < 0.1 dB (σ = 0.07 dB) Linear level display S/N > 16 dB, 0 dB to –70 dB 5 % of reference level (nom.) Total measurement uncertainty signal level 0 dB to –50 dB below reference level, S/N > 20 dB, sweep time auto, sweep type = FFT, RF attenuation 10 dB, 20 dB, 30 dB, 40 dB, RF preamplifier = off, span/RBW < 100, confidence level 95 %, +20 °C to +30 °C 3 MHz ≤ f < 3 GHz 0.5 dB

Measurement speed Local measurement and display update rate 1001 sweep points, sweep optimization set to “speed” 1 ms (1000/s) (nom.) Max. sweep rate, remote operation 4, 5 trace average = on 0.9 ms (1100/s) (nom.) Remote measurement and LAN transfer 4 2.8 ms (357/s) (nom.) Marker peak search 4 1.3 ms (nom.) Center frequency tune + sweep + sweep data transfer 4 15 ms (nom.) Trigger functions Trigger Trigger source free run, video, external, IF power, I/Q power Trigger offset span ≥ 10 Hz 0 s to 20 s span = 0 Hz (–sweep time) to 20 s Max. deviation of trigger offset ±10 ns IF power trigger Sensitivity min. signal power –60 dBm + RF attenuation – RF preamplifier gain max. signal power –15 dBm + RF attenuation – RF preamplifier gain IF power trigger bandwidth RBW > 5 MHz 40 MHz (nom.) RBW ≤ 5 MHz 6 MHz (nom.) Gated sweep Gate source video, external, IF power, I/Q power Gate delay 0 s to 20 s, min. resolution 10 ns Gate length 10 ns to 20 s, min. resolution 10 ns Max. deviation of gate length ±10 ns I/Q data Interface GPIB or LAN interface Memory length max. 25 Msample I and Q Word length of I/Q samples 14 bit Sampling rate standard 100 Hz to 12.5 MHz with R&S®FPL-B40 option 100 Hz to 100 MHz Max. signal analysis bandwidth (equalized) Standard 10 MHz with R&S®FPL-B40 option 40 MHz Signal analysis bandwidth ≤ 10 MHz Amplitude flatness fcenter ≥ 12 MHz and (1.25 × signal analysis bandwidth) ±0.3 dB (nom.) Deviation from linear phase fcenter ≥ 12 MHz and (1.25 × signal analysis bandwidth) ±1° (nom.) Signal analysis bandwidth ≤ 40 MHz Amplitude flatness fcenter ≥ 12 MHz and (1.25 × signal analysis bandwidth) ±0.5 dB (nom.) Deviation from linear phase fcenter ≥ 12 MHz and (1.25 × signal analysis bandwidth) ±1.5° (nom.)

Inputs and outputs RF input Impedance 50 Ω Connector N female VSWR RF attenuation ≥ 10 dB 10 MHz ≤ f < 3 GHz < 1.5 (nom.) Setting range of attenuator standard 0 dB to 45 dB, in 5 dB steps with R&S®FPL1-B25 option 0 dB to 45 dB, in 1 dB steps RF preamplifier gain with R&S®FPL1-B22 option 20 dB (nom.) Noise source drive Connector BNC female Output voltage 0 V/28 V, switchable, max. 100 mA (nom.) Power sensor Connector 6-pin LEMOSA female for supported R&S®NRP-Zxx power sensors USB interface 4 ports, type A plug, version 2.0 Reference output Connector BNC female Impedance 50 Ω Output frequency internal reference 10 MHz external reference same as reference input signal Level > 0 dBm (nom.) Reference input Connector BNC female Impedance 50 Ω Input frequency range 10 MHz ± 5 ppm Required level > 0 dBm into 50 Ω External trigger/gate input Connector BNC female Trigger voltage 0.5 V to 3.5 V Input impedance 10 kΩ IEC/IEEE bus control interface in line with IEC 625-2 (IEEE 488.2) Command set SCPI 1997.0 Connector 24-pin Amphenol female Interface functions SH1, AH1, T6, L4, SR1, RL1, PP1, DC1, DT1, C0 LAN interface 10/100/1000BASE-T Connector RJ-45 External monitor Connector DVI-D

General data Display 21 cm LC TFT color display (10.1") Resolution 1280 × 800 pixel (WXGA resolution) Pixel failure rate < 1 × 10–5 Data storage Internal standard solid-state drive (SSD) 32 Gbyte External supports USB 2.0 compatible memory devices Environmental conditions Temperature operating temperature range +0 °C to +50 °C storage temperature range –20 °C to +70 °C Climatic loading without condensation +40 °C at 85 % rel. humidity, in line with EN 60068-2-30, Mechanical resistance Vibration sinusoidal 5 Hz to 55 Hz 0.15 mm constant amplitude (1.8 g at 55 Hz); 55 Hz to 150 Hz acceleration: 0.5 g constant; in line with EN 60068-2-6 random 10 Hz to 300 Hz, acceleration 1.2 g (RMS), in line with EN 60068-2-64 Shock 40 g shock spectrum, in line with MIL-STD-810E method no. 516.4 procedure I, MIL-PRF-28800F EMC in line with EMC Directive 2014/30/EU including IEC/EN 61326-1 6, 7 , IEC/EN 61326-2-1, CISPR 11/EN 55011 6 , IEC/EN 61000-3-2, IEC/EN 61000-3-3 Recommended calibration interval 2 years Power supply AC supply without battery option 100 V to 240 V ± 10%, 50 Hz to 60 Hz ± 5%, 400 Hz ± 5% class of protection I in line with VDE 411 with battery option 100 V to 240 V ± 10%, 50 Hz to 60 Hz ± 5% Current consumption without options 1.7 A to 0.8 A (nom.) with internal battery (option R&S®FPL1-B31) in charge mode 3 A to 1.5 A (nom.) Safety in line with EN 61010-1, IEC 61010-1, UL 61010-1, CAN/CSA-C22.2 No. 61010-1 Test mark CSA, CSA-NRTL Dimensions and weight Dimensions W × H × D 408 mm × 186 mm × 235 mm (16.06 in × 7.32 in × 9.25 in) Net weight, nominal without options 6 kg (13.22 lb) with internal battery 7.3 kg (16 lb)

Options R&S®FPL1-B5 additional interfaces User port Connector 25-pin D-Sub female Output TTL-compatible, 0 V/5 V, max. 15 mA Input TTL-compatible, max. 5 V Noise source control Connector BNC female Output 0 V/28 V, max. 100 mA, switchable, supply for noise source Power sensor Connector 6-pin LEMOSA female for supported R&S®NRP-Zxx power sensors IF/video/demod out Connector BNC female, 50 Ω IF out Bandwidth equal to RBW setting IF frequency 25 MHz Output level center frequency > 10 MHz, span = 0 Hz, signal at reference level and center frequency 0 dBm (nom.) Video out Bandwidth equal to VBW setting Output scaling log. display scale logarithmic lin. display scale linear Output level center frequency > 10 MHz, span = 0 Hz, signal at reference level and center frequency 1 V (nom.), open circuit Audio output Loudspeaker built-in, adjustable AF out Connector 3.5 mm mini jack Output impedance 10 Ω Open-circuit voltage up to 1.5 V, adjustable

R&S®FPL1-B30 DC power input 12/24 V Input voltage range 12 V to 24 V (nom.) 10.4 V to 28 V, switch-on voltage > 11 V (meas.) Input current Vin = 12/24 V 13 A/6.5 A (nom.) Vin = 12/24 V, operating mode, without internal batteries (R&S®FPL1-B31) 5.5 A/2.7 A (meas.) Vin = 12/24 V, operating mode, internal batteries in charge mode 11 A/5 A (meas.) Vin = 12/24 V, instrument standby mode, internal batteries in charge mode 6.5 A/3 A (meas.) Temperature operating temperature range 0 °C to +40 °C storage temperature range –20 °C to +70 °C R&S®FPL1-B31 internal lithium-ion battery Operating time 3.5 h (nom.) Charge time standby mode, AC supply < 2 h (nom.) standby mode, external DC supply (R&S®FPL1-B30) < 2 h (nom.) operating mode < 4 h (nom.) Temperature operating temperature range, discharge 0 °C to +50 °C operating temperature range, charge 0 °C to + 45 °C storage temperature range –20 °C to +60 °C 8 R&S®FSV-B34 charger (only needed for charging spare batteries) AC input voltage range 100 V to 240 V, ±10 % (nom.) AC supply frequency 50 Hz to 60 Hz (nom.) Power consumption max. 300 W (nom.) Number of charger bays 4 Dimensions W × H × D 400 mm × 127 mm × 203 mm (15.75 in × 5 in × 8 in) Net weight 3.1 kg (6.9 lb)

Ordering information Designation Type Order No. Spectrum Analyzer R&S®FPL1003 1304.0004.03 Accessories supplied Power cable and quick start guide Options Designation Type Order No. Retrofittable Remarks OCXO Reference Frequency R&S®FPL1-B4 1323.1902.02 yes retrofit in service center Additional Interfaces R&S®FPL1-B5 1323.1883.02 yes user-retrofittable IF/video/demod out, user port, noise source control, power sensor, AF output, loudspeaker GPIB Interface R&S®FPL1-B10 1323.1890.02 yes user-retrofittable Second Hard Disk (SSD) R&S®FPL1-B19 1304.0427.02 yes user-retrofittable mounted on PC board, including analyzer firmware RF Preamplifier R&S®FPL1-B22 1323.1719.02 yes user-retrofittable 1 dB Steps for electronic attenuator R&S®FPL1-B25 1323.1990.02 yes user-retrofittable DC Power Supply 12/24 V R&S®FPL1-B30 1323.1877.02 yes user-retrofittable Internal Lithium-Ion Battery R&S®FPL1-B31 1323.1725.02 yes retrofit in service center; including 2 battery packs and internal charging unit 40 MHz Analysis Bandwidth R&S®FPL1-B40 1323.1931.02 yes user-retrofittable Firmware/software AM/FM/φM Measurement Demodulator R&S®FPL1-K7 1323.1731.02 Power Sensor Measurement with R&S®NRP Power Sensors R&S®FPL1-K9 1323.1754.02 supports R&S®NRPxx power sensors Noise Figure and Gain Measurements R&S®FPL1-K30 1323.1760.02 requires R&S®FPL1-B5 Recommended extras Designation Type Order No. Protective Hard Cover R&S®FPL1-Z1 1323.1960.02 Soft Carrying Bag for transport and outdoor operation R&S®FPL1-Z2 1323.1977.02 H-style Shoulder Harness (requires R&S®FPL1-Z2 option) R&S®FPL1-Z3 1323.1683.02 Spare Lithium-Ion Battery Pack R&S®FPL1-Z4 1323.1677.02 Anti-glare Display Film for outdoor operation R&S®FPL1-Z5 1323.1690.02 Lithium-Ion Battery Charger for charging spare batteries R&S®FSV-B34 1321.3950.02 19" Rackmount Kit R&S®FPL1-Z6 1323.1954.02 Headphones 0708.9010.00 Matching pads, 50/75 Ω L Section, matching at both ends R&S®RAM 0358.5414.02 Series Resistor, 25 Ω, matching at one end (taken into account in instrument function RF INPUT 75 Ω) R&S®RAZ 0358.5714.02 High-power attenuators Attenuator 100 W, 3/6/10/20/30 dB, 1 GHz R&S®RBU100 1073.8495.xx (xx = 03/06/10/20/30) Attenuator 50 W, 3/6/10/20/30 dB, 2 GHz R&S®RBU50 1073.8695.xx (xx = 03/06/10/20/30) Attenuator 50 W, 20 dB, 6 GHz R&S®RDL50 1035.1700.52 Connectors and cables IEC/IEEE Bus Cable, length: 1 m R&S®PCK 0292.2013.10 IEC/IEEE Bus Cable, length: 2 m R&S®PCK 0292.2013.20 DC block DC Block, 10 kHz to 18 GHz (type N) R&S®FSE-Z4 1084.7443.02

Power sensors supported by the R&S®FPL1-K9 option 9 Designation Type Order No. Universal power sensors 10 MHz to 8 GHz, 100 mW, two-path R&S®NRP-Z211 1417.0409.02 10 MHz to 8 GHz, 200 mW 10 R&S®NRP-Z11 1138.3004.02 10 MHz to 18 GHz, 100 mW, two-path R&S®NRP-Z221 1417.0309.02 10 MHz to 18 GHz, 200 mW 10 R&S®NRP-Z21 1137.6000.02 10 MHz to 18 GHz, 2 W 10 R&S®NRP-Z22 1137.7506.02 10 MHz to 18 GHz, 15 W 10 R&S®NRP-Z23 1137.8002.02 10 MHz to 18 GHz, 30 W 10 R&S®NRP-Z24 1137.8502.02 Power sensor modules with power splitter DC to 18 GHz, 500 mW R&S®NRP-Z27 1169.4102.02 DC to 26.5 GHz, 500 mW R&S®NRP-Z37 1169.3206.02 Thermal power sensors 0 Hz to 18 GHz, 100 mW R&S®NRP18T 1424.6115.02 0 Hz to 18 GHz, 100 mW R&S®NRP18TN 1424.6121.02 0 Hz to 33 GHz, 100 mW R&S®NRP33T 1424.6138.02 0 Hz to 33 GHz, 100 mW R&S®NRP33TN 1424.6144.02 0 Hz to 40 GHz, 100 mW R&S®NRP40T 1424.6150.02 0 Hz to 40 GHz, 100 mW R&S®NRP40TN 1424.6167.02 0 Hz to 50 GHz, 100 mW R&S®NRP50T 1424.6173.02 0 Hz to 50 GHz, 100 mW R&S®NRP50TN 1424.6180.02 0 Hz to 67 GHz, 100 mW R&S®NRP67T 1424.6196.02 0 Hz to 67 GHz, 100 mW R&S®NRP67TN 1424.6209.02 0 Hz to 110 GHz, 100 mW R&S®NRP110T 1424.6215.02 Average power sensors 8 kHz to 6 GHz, 200 mW R&S®NRP6A 1424.6796.02 8 kHz to 6 GHz, 200 mW R&S®NRP6AN 1424.6809.02 9 kHz to 6 GHz, 200 mW 10 R&S®NRP-Z91 1168.8004.02 8 kHz to 18 GHz, 200 mW R&S®NRP18A 1424.6815.02 8 kHz to 18 GHz, 200 mW R&S®NRP18AN 1424.6821.02 Three-path diode power sensors 100 pW to 200 mW, 10 MHz to 8 GHz R&S®NRP8S 1419.0006.02 100 pW to 200 mW, 10 MHz to 8 GHz, LAN version R&S®NRP8SN 1419.0012.02 100 pW to 200 mW, 10 MHz to 18 GHz R&S®NRP18S 1419.0029.02 100 pW to 200 mW, 10 MHz to 18 GHz, LAN version R&S®NRP18SN 1419.0035.02 1 nW to 2 W, 10 MHz to 18 GHz R&S®NRP18S-10 1424.6721.02 10 nW to 15 W, 10 MHz to 18 GHz R&S®NRP18S-20 1424.6738.02 30 nW to 30 W, 10 MHz to 18 GHz R&S®NRP18S-25 1424.6744.02 100 pW to 200 mW, 10 MHz to 33 GHz R&S®NRP33S 1419.0064.02 100 pW to 200 mW, 10 MHz to 33 GHz, LAN version R&S®NRP33SN 1419.0070.02 100 pW to 200 mW, 10 MHz to 33 GHz, LAN version, TVAC-compliant R&S®NRP33SN-V 1419.0129.02 100 pW to 100 mW, 50 MHz to 40 GHz R&S®NRP40S 1419.0041.02 100 pW to 100 mW, 50 MHz to 40 GHz, LAN version R&S®NRP40SN 1419.0058.02 100 pW to 100 mW, 50 MHz to 50 GHz R&S®NRP50S 1419.0087.02 100 pW to 100 mW, 50 MHz to 50 GHz, LAN version R&S®NRP50SN 1419.0093.02 Wideband power sensors 50 MHz to 18 GHz, 100 mW R&S®NRP-Z81 1137.9009.02 50 MHz to 40 GHz, 100 mW (2.92 mm) R&S®NRP-Z85 1411.7501.02 50 MHz to 40 GHz, 100 mW (2.40 mm) R&S®NRP-Z86 1417.0109.40 50 MHz to 44 GHz, 100 mW (2.40 mm) R&S®NRP-Z86 1417.0109.44

Warranty Base unit 3 years All other items 11 1 year Options Extended Warranty, one year R&S®WE1 Please contact your local Rohde & Schwarz sales office. Extended Warranty, two years R&S®WE2 Extended Warranty with Calibration Coverage, one year R&S®CW1 Extended Warranty with Calibration Coverage, two years R&S®CW2 Extended Warranty with Accredited Calibration Coverage, one year R&S®AW1 Extended Warranty with Accredited Calibration Coverage, two years R&S®AW2 Extended warranty with a term of one to two years (WE1 to WE2) Repairs carried out during the contract term are free of charge 12. Necessary calibration and adjustments carried out during repairs are also covered. Simply contact the forwarding agent we name; your product will be picked up free of charge and returned to you in top condition a couple of days later. Extended warranty with calibration (CW1 to CW2) Enhance your extended warranty by adding calibration coverage at a package price. This package ensures that your Rohde & Schwarz product is regularly calibrated, inspected and maintained during the term of the contract. It includes all repairs 12 and calibration at the recommended intervals as well as any calibration carried out during repairs or option upgrades.
